W/L Series

Large Volume PET Blow Molding Machine

Standard Version
- Highly reliable hydraulic clamping design
- Double robotic arms for speedy preform loading
- Cost effective machine for easy maintenance
- Compact design for smaller floor footprint
- Modular design for easy maintenance
Optional Accessories
- Robotic arm system for pre-insertion of handle in oil bottles
- Side-heater system for oval & flat bottle preform
- Positioning device for preform orientation
- Gas recycling system for lower energy consumption
Applicable Sectors
Mineral water, Carbonated beverages, Edible oil, Alcoholic drinks, CSD, Non perishable food, Cosmetics, Clean lotion, Detergent, Tennis bottles

  • CPSB-1000WM

    Standard

    Max.capacity:12 ltr

    Neck Lnt-diameter:200mm

    Spindle chain pitch:

    Cavity:1

    Output BPH:450


  • CPSB-1000W

    Standard

    Max.capacity:7 ltr

    Neck Lnt-diameter:120mm

    Spindle chain pitch:

    Cavity:1

    Output BPH:600


  • CPSB-2000L

    Standard

    Max.capacity:5 ltr

    Neck Lnt-diameter:50mm

    Spindle chain pitch:

    Cavity:2

    Output BPH:1300


  • CPSB-1000L

    Standard

    Max.capacity:10 ltr

    Neck Lnt-diameter:50mm

    Spindle chain pitch:

    Cavity:1

    Output BPH:600


  • CPSB-2000W

    Standard

    Max.capacity:5 ltr

    Neck Lnt-diameter:120mm

    Spindle chain pitch:

    Cavity:2

    Output BPH:1300

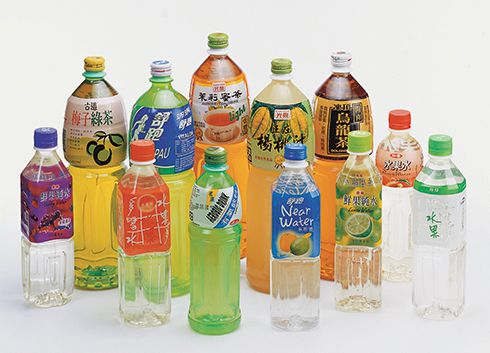

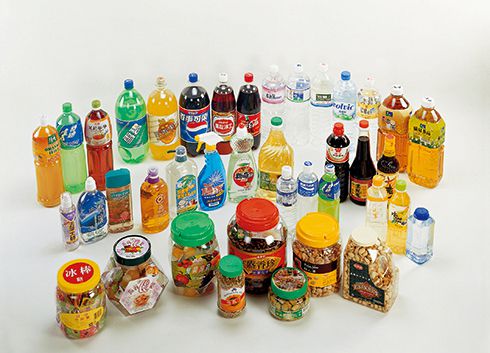

Special Bottle
Fruit Juices
Mineral Water

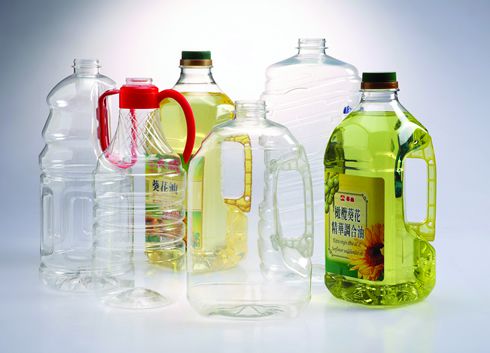

Edible Oil
